Pezal PGG8000E-E3 7.5KW

Description

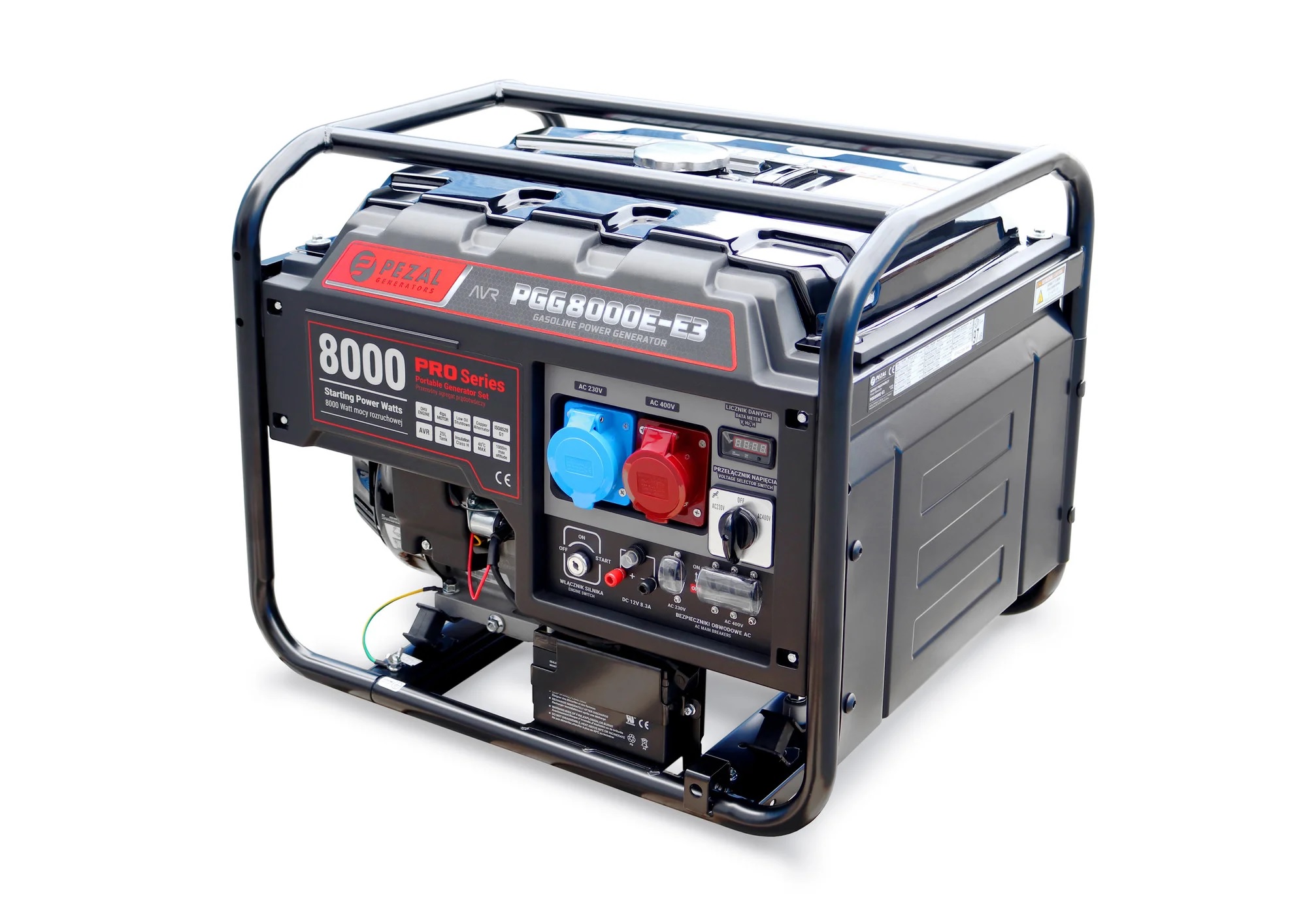

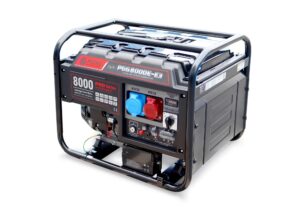

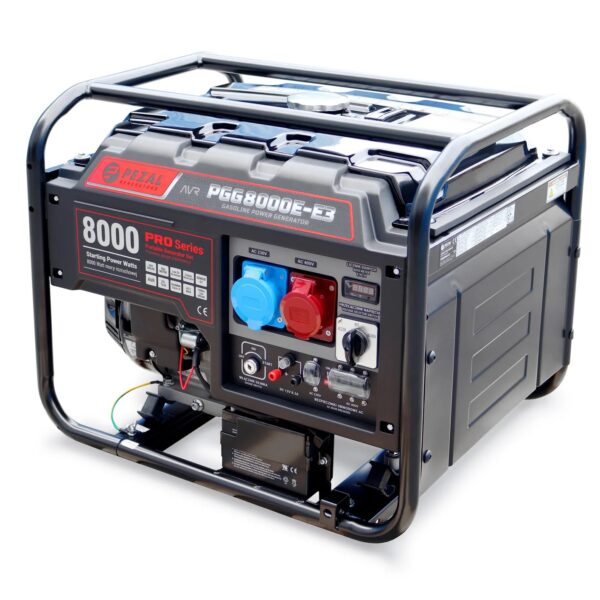

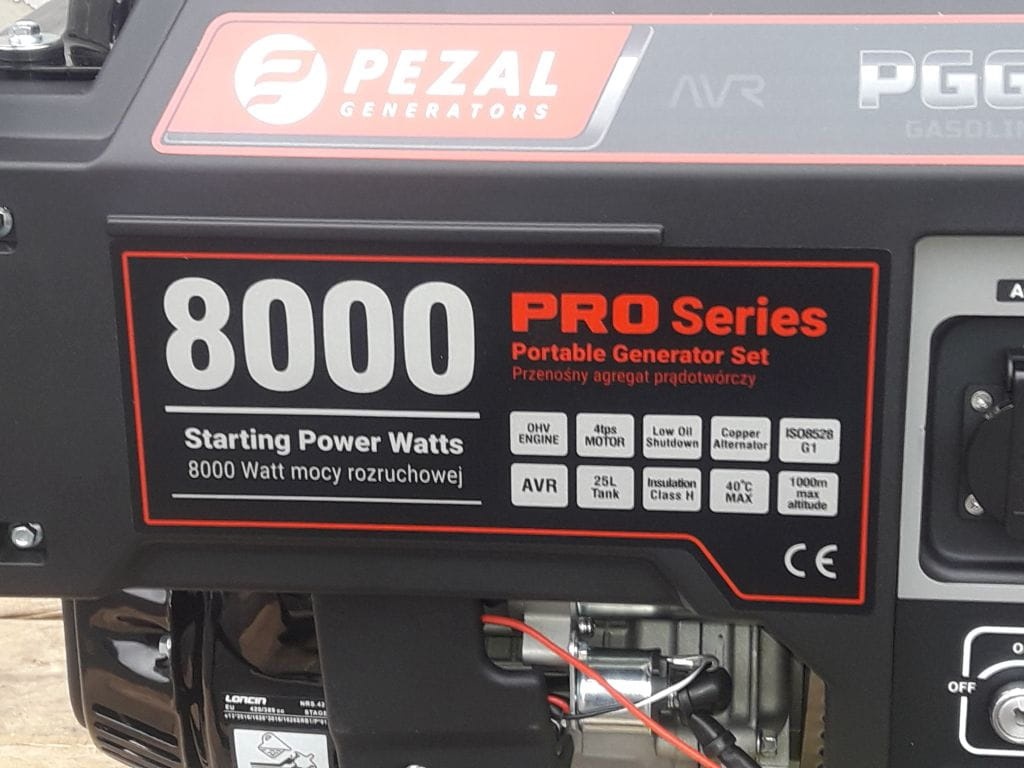

Gasoline Generator for Electricity Production Pezal PGG8000E-E3 7.5KW
Copper Winding, Inverter AVR Generator, Generator for Home, Recreation, Farm.

Engine:
PG420 single-cylinder, 4-stroke (OHV), air-cooled
Engine power 15 HP, 11.18 kW
Engine displacement 420 cc
Speed 3000 rpm
Oil capacity 1.1L
Fuel tank capacity 25L
Fuel: 95
Fuel consumption: min 1.2L/h; max 3.0L/h
Oil level warning system
Fuel gauge

Electricity Generator:
Copper winding generator
Maximum output power 6.6 kW (400V) / 7.5 kW (230V)
Rated output power 6.0 kW (400V) / 6.0 kW (230V)
Voltage 400V/230V/12V
Current 10.8A (400V) / 26.0A (230V) / 8.3A (12V)
Power factor: 0.8 (400V) / 1.0 (230V)
One 400V AC outlet
One 230V AC outlet
One 12V DC outlet
AVR voltage stabilizer
Frequency 50Hz

Manual start
Protection class IP21
Sound level [dB(A)]: 95
Dimensions 620x490x510 mm
Weight 89 kg

AVR Voltage Stabilizer:
Its main task is to stabilize the output voltage.
AVR reduces voltage fluctuations, ensuring safe use of electrical appliances.
AVR significantly reduces the risk of damage to sensitive electronics.
High-performance AVRs smooth the sine wave to a level of 1%-5%, the standard for the power grid is 5%-10%, which significantly increases device safety.
